Thread: babu bajaR build

  1. #1
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like

    babu bajaR build

    Not sure where to put this DIY.
    Have started the baja headlight racks for you guys that were interested and have confirmed one. You can follow this thread for updates. There's one for Jaimie and mods, what about a 'follow' button to follow your fav build/threads?...

    I stuffed up (as usual) the steel order and got 16mm x 2mm thick instead of 1.6mm thick. Means it will make for a stronger rack but my life harder to make them!



    the template chipped and broke after i completed the first one and tried to remove the ring from the template, so had to make another template.









    2nd template, doubled up due to the thicker pipe.











    to make these things worth their weight in gold in 100yrs time, chopped up the template after the last ring so i don't have to make any more.. lol..









    still plenty of work to grind and smooth the welds...

  2. Likes Drewf Liked this post
  3. #2
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,294
    Post Thanks / Like
    Click on thread tools and subscribe ..
    its engine oil madge ,,,
    Your soaking in it ,,!!

  4. Thanks Classic Honda 50's Thanked for this post
  5. #3
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    started the top mounts, forgot to take pics in between, was late... lol.. think my babuG build thread may have some pics, can't remember.







    up to making the hardest bit, which are the bottom mounts.... they need to be done during the day cos there's lots of cutting and grinding and i'm finding it hard to get monkey work in during the day...

  6. #4
    Moderator Diggs's Avatar
    Join Date
    Jan 2012
    Location
    Brisbane North
    Posts
    1,345
    Post Thanks / Like
    Looking good Babu, I assume by the volume you are looking to sell them? What kind of price are you going to put on them? I was keen to get one for my Trex, width between headlight brackets is currently 180mm - would that work? Cheers
    Rigby "No dude, you're doing it wrong! Righty-tidey, lefty-losey! Not lefty-tidey mess it up because you're a loser!"

    ZRX1200S, RGV250 VJ22, Skyteam T-Rex, Z50A K2U '72, Z50J1 '78, Z50R '82, Tonelli Gorilla

  7. #5
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Hey Diggs, these are taken, made to order from my babuG build thread . They won't fit the Trex, they mount on baja or gorilla forks only.

  8. #6
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by dex View Post
    Click on thread tools and subscribe ..
    Champion Dex, thanks! Never knew that.

  9. #7
    Moderator Diggs's Avatar
    Join Date
    Jan 2012
    Location
    Brisbane North
    Posts
    1,345
    Post Thanks / Like
    Quote Originally Posted by babu View Post
    Hey Diggs, these are taken, made to order from my babuG build thread . They won't fit the Trex, they mount on baja or gorilla forks only.
    Cheers Babu. They look great anyway!
    Rigby "No dude, you're doing it wrong! Righty-tidey, lefty-losey! Not lefty-tidey mess it up because you're a loser!"

    ZRX1200S, RGV250 VJ22, Skyteam T-Rex, Z50A K2U '72, Z50J1 '78, Z50R '82, Tonelli Gorilla

  10. #8
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like

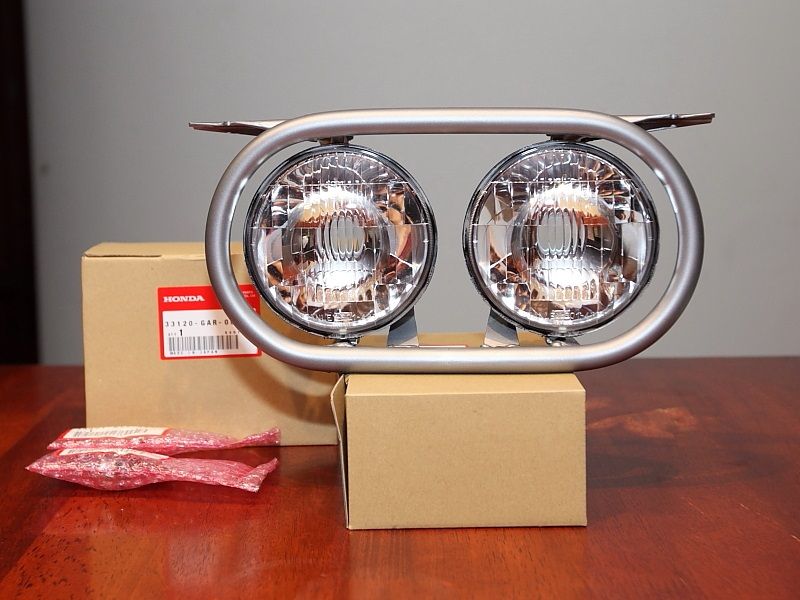

    managed some monkey time last 2 weekends and got one done!

    you've prob seen before it but these pics are for tb01... lol...

    bottom mounts











    pain to sand the rim welds smooth, took ages..










  11. Likes Classic Honda 50's, nerfbatt Liked this post
  12. #9
    L Plater
    Join Date
    Aug 2015
    Location
    California
    Posts
    7
    Post Thanks / Like
    You are an artist

  13. #10
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Thanks mate. .

    one is ready to go, guess US/Canada will go first due to shipping time, local guys will have a little longer wait..














  14. Likes Scott74, eichkay Liked this post
  15. #11
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    couple more ready for Xmas... lol.. hopefully a build thread or 2 to come from these would be good.








  16. #12
    Moderator Z50AYE!'s Avatar
    Join Date
    Apr 2012
    Location
    Melbourne East
    Posts
    2,401
    Post Thanks / Like
    You've made me jealous. Now I wish I had have ordered one when they were on offer.
    ​Too many bikes, not enough ride days.

  17. #13
    Charter Member Paulie's Avatar
    Join Date
    Sep 2011
    Location
    Melbourne
    Posts
    1,593
    Post Thanks / Like
    Quote Originally Posted by babu View Post
    couple more ready for Xmas... lol.. hopefully a build thread or 2 to come from these would be good
    Should be able to have a monkey of the month for Baja headlights now!

  18. #14
    Charter Member eichkay's Avatar
    Join Date
    Sep 2011
    Location
    Perth
    Posts
    1,691
    Post Thanks / Like
    Keeping monkey world happy one custom part at a time..

  19. #15
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by Z50AYE! View Post
    You've made me jealous. Now I wish I had have ordered one when they were on offer.
    Al, seen your skills mate, you can knock one up in no time! think there should be enough photos to show how i put one together with the limited tools i have.

    Quote Originally Posted by Paulie View Post
    Should be able to have a monkey of the month for Baja headlights now!
    wait till i build a J1 with baja headlights for matty so he can enter and have a decent chance of winning for once...

    Quote Originally Posted by eichkay View Post
    Keeping monkey world happy one custom part at a time..
    yep, one at a time... have the next part in mind already for next year...

  20. #16
    Moderator MattyP's Avatar
    Join Date
    Sep 2011
    Location
    Canberra
    Posts
    4,931
    Post Thanks / Like
    HAHAHAHA
    Life is too short for cheap carbs...

  21. #17
    L Plater
    Join Date
    Mar 2013
    Location
    San Francisco, CA
    Posts
    7
    Post Thanks / Like
    Wow. Totally bummed i have been off the grid on this forum.. if someone does not want theirs... please pm me.

  22. #18
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    US kit #2 sent, please PM me when you get it, post office told me 3-10 days not 3-7 sorry. You get a bonus of 2 extra globes lol..

    For the guys that ordered and didn't follow through, you dont have the rights to buy them anymore... or any parts i knock up in the future lol...

    Think i will turn this into a build thread "babu bajaR", mods could you please change the title and wack it in the right spot? Tks, can't waste a spare part can we... last build!!☺

  23. #19
    Charter Member Paulie's Avatar
    Join Date
    Sep 2011
    Location
    Melbourne
    Posts
    1,593
    Post Thanks / Like
    Quote Originally Posted by babu View Post
    For the guys that ordered and didn't follow through, you dont have the rights to buy them anymore... or any parts i knock up in the future lol...
    If you have extras, I'm positive you won't have problems selling any. I know MattyP is after one. Hahaha!

  24. #20
    Moderator MattyP's Avatar
    Join Date
    Sep 2011
    Location
    Canberra
    Posts
    4,931
    Post Thanks / Like
    Definitely want one please.
    Life is too short for cheap carbs...

  25. #21
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Thanks for the thread name change Dex, champion!

    Will be turning a 92R into a budget baja wannabe with a cheap j1 frame i scored off eBay recently. Should've called this a j1 build..or bug eyed j1...lol..

    Looking for some basic measurements of one of these if anyone's got one and can spare time to measure, otherwise I'll have to spend time scaling off pics.


  26. #22
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,294
    Post Thanks / Like
    been called worse ,,

    and that was a friday ..
    its engine oil madge ,,,
    Your soaking in it ,,!!

  27. #23
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    got another cancellation on these baja lights, so many clowns on this forum should name some of you guys... lol...

    this is the last set on offer, the rest i'll keep for future builds, no more will be made!, well by me anyways

    What you see in the first 5 pics.

    actually made this one for my build but changed my mind...
















  28. #24
    L Plater
    Join Date
    Mar 2013
    Location
    San Francisco, CA
    Posts
    7
    Post Thanks / Like
    Got mine in the post... thanks. These are well built compared to the original honda bracket. Good luck with the last set.

  29. #25
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by hokoman View Post
    Got mine in the post... thanks. These are well built compared to the original honda bracket. Good luck with the last set.
    thanks hokoman, you're lucky you have an original... show us the bike when you're done.


    no takers on rear rack measurements so did a bit of scaling off pics, doesn't look like much but should be enough to get a pilot one going.


    pic for a bit of motivation to get me going... last build!


  30. #26
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,294
    Post Thanks / Like
    Swing arm pix please..!!
    its engine oil madge ,,,
    Your soaking in it ,,!!

  31. #27
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by dex View Post
    Swing arm pix please..!!
    will post once i've finished dex. not very interesting, just a budget home made thing.

  32. #28
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,294
    Post Thanks / Like
    And you thought just having a smidge of it in the edge of the pic was going to hide it ,,?��
    its engine oil madge ,,,
    Your soaking in it ,,!!

  33. #29
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by dex View Post
    And you thought just having a smidge of it in the edge of the pic was going to hide it ,,?��
    nothing gets past dex!

    pic of part of the swing arm design for you dex... this one is not as fancy or wide as the previous, just an extension of a stock swing arm.
    Originally i was just going to just do the standard extension, cut and extend the middle section but then decided something a bit chunkier...


    budget (not Matty's budget) build so hoping i don't mod it too much and to keep costs down.

  34. #30
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by babu View Post
    got another cancellation on these baja lights, so many clowns on this forum should name some of you guys... lol...

    this is the last set on offer, the rest i'll keep for future builds, no more will be made!, well by me anyways

    What you see in the first 5 pics.

    actually made this one for my build but changed my mind...

    Sold.

  35. #31
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Got an early Christmas pressy today from France, a nice clean monkey zb/r shock.
    Been looking all over for a short shock for a while but couldn't find one and all that time the Dirty boys had one lying around! Must be Christmas cos they didn't want anything for it. ☺
    Bit of an incentive to finish off the swing arm now and post some pics for young dex ☺



  36. #32
    Moderator MattyP's Avatar
    Join Date
    Sep 2011
    Location
    Canberra
    Posts
    4,931
    Post Thanks / Like
    Hooray! Last build
    Life is too short for cheap carbs...

  37. #33
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,294
    Post Thanks / Like
    its engine oil madge ,,,
    Your soaking in it ,,!!

  38. #34
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,294
    Post Thanks / Like
    whoooow back ,,

    aftermentioned ,," just an extension of the stock swing arm " ...

    but ,,,,

    only one short shock !?!?

    you sneaky devil .
    its engine oil madge ,,,
    Your soaking in it ,,!!

  39. #35
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Nice... Didn't even think to look for zb ones until it was offered, was searching 220mm. Think i need matty's budget to buy these...

    It is an extension of stock as i needed to chop up an original, slight mod to the extended section....

    Done my last build matty, this is just a slight mod of a z50r....😉

  40. #36
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    pls don't tell mr Honda i butchered a few of his logos for the new bajaR breed... lol...

    s-l1600 (21)1.JPG + s-l1600 (1)1.JPG + images (1).jpg


    =

  41. Thanks eichkay Thanked for this post
    Likes z nut Liked this post
  42. #37
    Charter Member MOTODEVO's Avatar
    Join Date
    Sep 2011
    Location
    melbs
    Posts
    1,286
    Post Thanks / Like
    Looks cool

  43. #38
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Quote Originally Posted by dex View Post
    whoooow back ,,

    aftermentioned ,," just an extension of the stock swing arm " ...

    but ,,,,

    only one short shock !?!?

    you sneaky devil .
    ah just found a few old pics of the swing arm for you dex, i need some motivation to get back on finishing off these builds i started lol... warning lots of pics

    took and old swing arm and chopped it.

    slide it in some 1" x 2" square tube


    no fat ass this time just long.


    and no fancy disc brakes



  44. Likes Peter Liked this post
  45. #39
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    found the shortest shock i had lying around (pw80) and designed the mono mount based on it.


    mounted it


    somehow Jd(france) saw it and said it looks shit so sent me a free monkeyR shock lol... said the monkeyR shocks are a bit soft for his liking but don't think i'll have a problem with that.
    the bracket then changed slightly, no longer adjustable. Shocks will sit more vertical and more hidden.
    the timber block was cut to width of mount to assist put the bracket in place for welding.



    looks abit better now i think...



    no need for the pw80 shock now so free if anyone needs one...

  46. Likes funkimonkey, raytriplej, nerfbatt, Peter Liked this post
  47. #40
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    finally finished off a shock top mount for this thing... not worth making but started 6mths ago so finished it off...

    Off cut piece of round Al left over from making candle bases for the Mrs...
    I bought the table saw to build my kitchen but using it more for monkey stuff! haha...





  48. Likes z nut, pjdave, Peter Liked this post
  49. #41
    Junior Member dom2dom's Avatar
    Join Date
    May 2014
    Location
    Jakarta
    Posts
    49
    Post Thanks / Like
    I just found this sacred thread. You are the real monkey whisperer!

  50. #42
    Junior Member
    Join Date
    Jun 2015
    Location
    Melbourne
    Posts
    47
    Post Thanks / Like
    Loving the attention to detail and custom made parts!

  51. #43
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Since I'm not continuing with this build (I think, probably will regret this..), I'm selling the motor intended for this build.
    New parts as specified, the Bore and Carb have a few hundred Kms on them.
    Parts costs me abit over $3k, Price is $2.6k + post, please PM.

    Engine specs: (links are for info and manufacturers specs)

    Bore : SP TAKEGAWA Super Head 4V+R SCUT106cc Big Bore Kit (https://japan.webike.net/products/9658840.html)
    Carb: MIKUNI VM26 Carburetor Kit (Super Head4V+R) (https://japan.webike.net/products/20020460.html)
    New Clutch: Kitaco Manual Clutch Kit (https://japan.webike.net/products/20524252.html)
    New Rotor: SP TAKEGAWA Super Street Outer Rotor (https://japan.webike.net/products/8492751.html)
    Stator cover: HONDA z50R (https://classichonda50saustralia.com...ank-cover.html)
    Crank: Honda CRF50
    Drive: Honda 4 speed
    Case: Honda 5Z0R
    New Gear Shifter: SP TAKEGAWA gear shifter (http://www.******.com.au/takegawa-ge...ter-z50-crf50/) ****=r.c.r.a.f.t without the dots.
    New Exhaust: CLIPPING POINT High Power Sports Exhaust with Baffle (https://japan.webike.net/products/21129685.html)








    The case is from a 6V Z50R and has been modified to accept a 12V stator cover for 12V electricals. If you want the honda 6V look say for a CT70, because it's running the smaller takegawa outer rotor you can fit 6V covers by grinding the inside of the 6V cover just a tad.
    2016-07-09 21.07.25.jpg

    2016-07-09 21.08.25.jpg

    comes with boxes if you want

    collecting dust at the moment

    Ready to drop into your CT70, baja, JZ etc... PM if interested. Ta

  52. Likes Peter, raytriplej Liked this post
  53. #44
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    $2400

  54. Likes MattyP, raytriplej Liked this post
  55. #45
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,597
    Post Thanks / Like
    Exhaust sold, engine - $2000

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
