    Bringing back a rough J1

    G'day all,

    Getting back into some Z50 builds after getting side tracked with work and other bike builds.

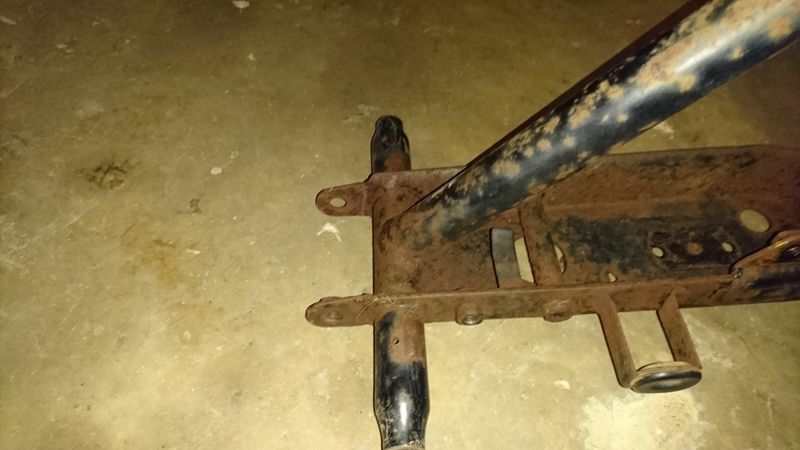

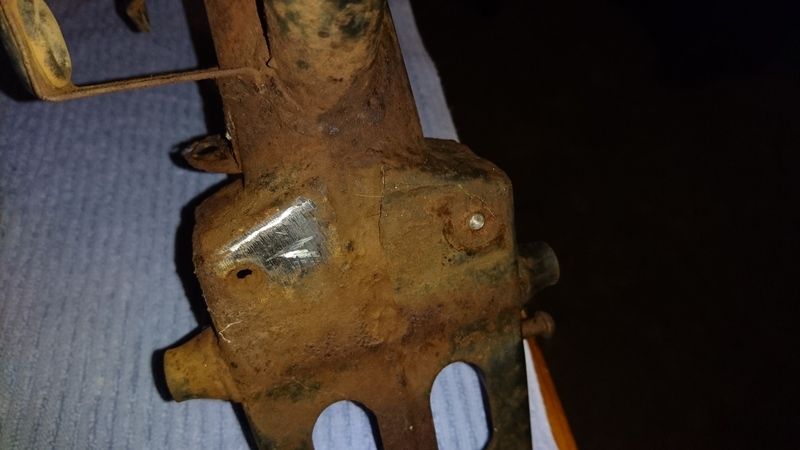

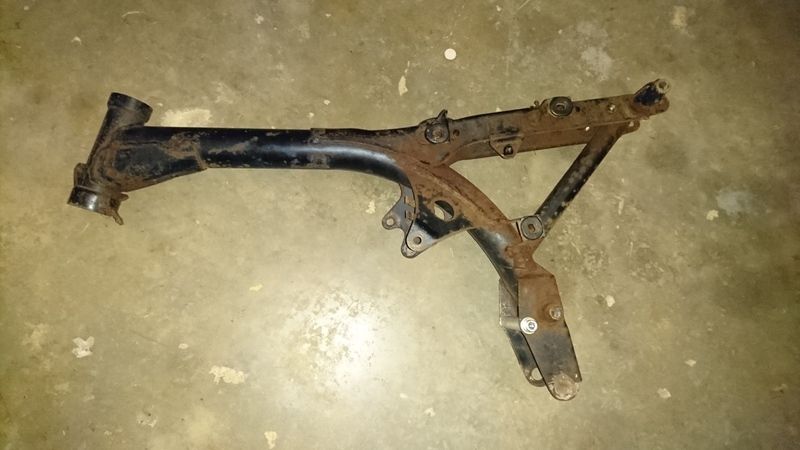

    I picked up a really tired J1 from a mate, had a few bits missing but it seemed salvageable, unfortunately no pics of when I first got it.

    I'm starting with the frame, and its got the usual, bent fork plate, missing nuts, broken bolts in threads, fair bit of corrosion, and a stuck rear brake pedal.






    First step was the stuck brake pedal, after lots of heat, WD40, hammering, and swearing, I got nowhere except for a few more dings in the frame. Resorted to the grinder and that fixed in a few minutes.



    I'm drawing up a new brake pedal shaft, its fairly straightforward, trying to decide on the type of steel, I'm thinking something like a 1030 should be decent enough without any problems welding. Anyone replaced one of these before?

    Jake

  2. #2
    Moderator GIMP_PRO's Avatar
    Join Date
    Sep 2011
    Location
    Morayfield - Brisbane
    Posts
    2,843
    Post Thanks / Like
    I was lucky enough that a member had actually made me a replacement shaft. I got no idea on what he made it out of, but I made a replacement part for the frame and welded in the shaft, came up nicely.

    Some photos for inspiration (copy and pasted from the post)







    Find some donor metal


    Test fitted the plate to check my high tech drawings




    Fixed the welds up at the back




    Welded it up




    MONKEY ON BROTHERS! 
    Hidden Content

    • Custom z50jz • Custom Chaly project • Original z50j1 • Kayla's Custom z50j1 project • Crf50 • z50r Resto project • white gorilla • Skyteam Munster

  3. #3
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,322
    Post Thanks / Like
    Moved to j1 resto section
    its engine oil madge ,,,
    Your soaking in it ,,!!

  4. #4
    Life Member Peter's Avatar
    Join Date
    Oct 2011
    Location
    CENTRAL COAST NSW
    Posts
    2,589
    Post Thanks / Like
    Quote Originally Posted by Mech_Z50J1 View Post
    I'm drawing up a new brake pedal shaft, its fairly straightforward, trying to decide on the type of steel, I'm thinking something like a 1030 should be decent enough without any problems welding. Anyone replaced one of these before?

    Jake
    I'm pretty sure it's just mild steel, they bent fairly easy. :-)
    I've tried different materials, plasticine was a bit too soft so I tried a piece of wood dowel, it was easy to shape and drill but burst into flames when I tried welding it on. Steel seemed the best stuff to use so I'd recommend it.
    Keep up the good work and also the pictures coming.

  5. Likes MOTODEVO, OCDZ50J, z nut Liked this post
  6. #5
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like
    Thanks for the info, knocked up a quick drawing for a new shaft, made the section that goes in the frame a larger diameter as its going to need a bit of cleaning on the frame (I was a bit rough getting at the original shaft):


    Got the new shaft, seems like it should do the job:


    The new shaft fits the brake pedal better than off my old J1!


    Now I need to get onto the frame!

    Jake

  7. #6
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

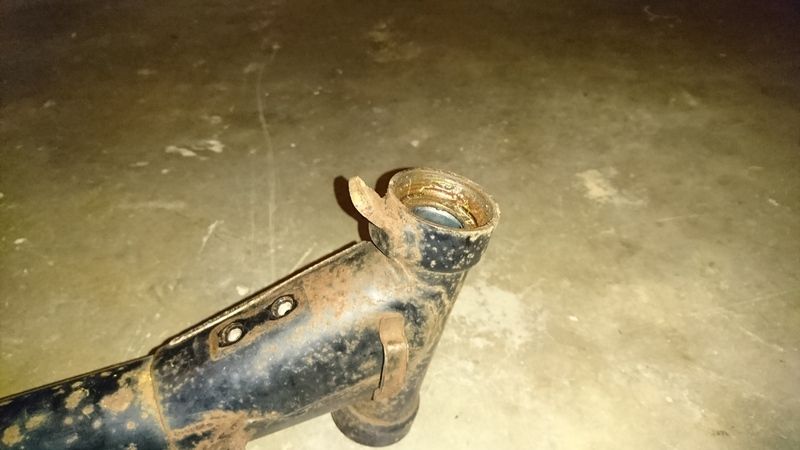

    Started the frame today, the bent steering stop tab was pretty easy to get rid off with some grinding:

    Just need to make up a new tab from some pipe/tube, unfortunately pipe/tube ID of 46mm (OD of head tube) isn't a common size, I'll just have to go with the closest:

    The stuck rear lower fend mounting bolt was a bit of a pain, thought I would try a small easy out I had, that only made things worse...snapped off inside the bolt

    Drilling out and punching through the busted easy out:

    Drilled clean:

    Tapped and good to go:

    Jake

  8. #7
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like
    New steering tab:

    The head tube is 46mm diameter, I had a few different ideas to make up a new replacement steering tab, but it was eventually made up by turning a 46mm tube up, 4.5mm wall:


    Then the tab was cut out and filed up:


    Ready for welding onto the head tube.

    Jake

  9. #8
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like
    Rear frame fender nut:

    Start with one of these:


    And after mucking around way too much, you can make one of these:


    If only I had some 1/2" hex bar...unfortunately a simple M6 nut has a smaller body than what these are...would you be able to tell the difference? Probably not, but I'm just doing it for fun...


    Ready for welding:


    Jake

  10. Likes Peter Liked this post
  11. #9
    Moderator Diggs's Avatar
    Join Date
    Jan 2012
    Location
    Brisbane North
    Posts
    1,476
    Post Thanks / Like
    Great skills mate, something I really envy is the ability to work metal like this.
    Rigby "No dude, you're doing it wrong! Righty-tidey, lefty-losey! Not lefty-tidey mess it up because you're a loser!"

    ZRX1200S, RGV250 VJ22, Skyteam T-Rex, Z50J1 '78, XV250 Virago

  12. #10
    Senior Member
    Join Date
    Mar 2015
    Location
    croydon
    Posts
    285
    Post Thanks / Like
    you have great skills , and way too much spare time . I would just buy the nut needed !

  13. #11
    Moderator dex's Avatar
    Join Date
    Sep 2011
    Location
    south tas
    Posts
    9,322
    Post Thanks / Like
    Top way of doing the steering stop
    its engine oil madge ,,,
    Your soaking in it ,,!!

  14. #12
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

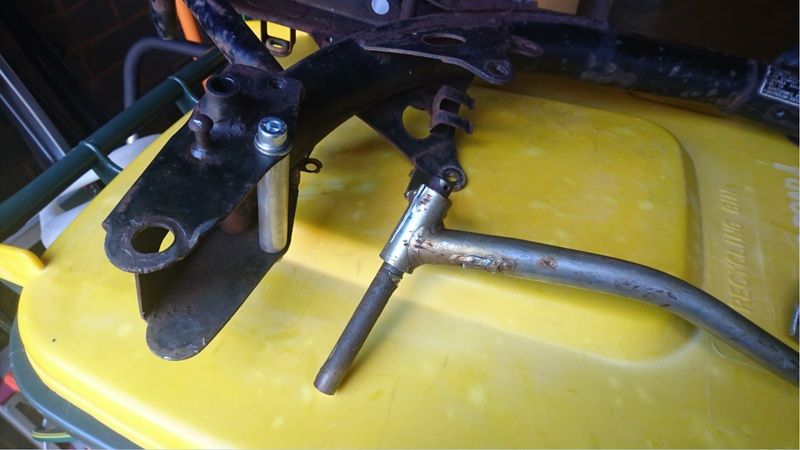

    Just a quick update, not much progress.

    Holding rear nut in place and welding it up:


    Then smoothing out the welds a bit:


    Tacking the steering stop in place to check the travel range and make sure it clears the tank:


    Then weld it up fully:


    Welding up the brake pedal shaft and smoothing out the welds:


    That's the frame pretty much ready for blasting and painting.

  15. #13
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

    Fork outers

    Checking out the forks, looks like one of the threads needs a clean, its an M34x1 thread, I'll have to see what I can clean that up with.


    Right hand indicator mounts is missing a wire hold tab, but I've got some replacement wire for that, I only need about 20mm out of the 30m!


    Otherwise, forks seems pretty decent.

    Cheers

    Jake

  16. #14
    Senior Member mick's Avatar
    Join Date
    Jan 2015
    Location
    hobart
    Posts
    696
    Post Thanks / Like
    Loving the engineering. Done most of this stuff myself. Grab yourself a thread file from a nut and bolt shop or engineering supplies shop. About $35 from memory. Make sure it has the 1mm pitch on it. Good for internal and external threads. Will take a bit to restore threads but a life saver. Good for steering stem thread also. M22 x 1.
    74AŚ3. 78J1. 79R. 82R. 83R. 99R. 74MR50. 75XR75. 98XR70 Crf70. Crf230. Crf450. KLX140.

  17. #15
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

    Plated bits

    Got some plated bits done, in a silver/gold finish and also some chrome:


    Although the plastic didn't fair too well on the handle bar knobs:


    I'm going to try and paint these up gloss black, any decent products out there that adhere well to plastic?

    Jake

  18. Likes dex Liked this post
  19. #16
    Forum Founder Classic Honda 50's's Avatar
    Join Date
    Sep 2011
    Location
    Hunter Valley, NSW
    Posts
    1,600
    Post Thanks / Like
    Classic Honda 50's Australia - Visit our online store at -Hidden Content

    PERFORMANCE, REPRODUCTION AND OEM PARTS TO SUIT OLD AND NEW HONDA AND OTHER 4 STROKE MINIBIKES AND MOTORBIKES INCLUDING KAWASAKI, YAMAHA AND SUZUKI.

    Parts to Suit: Honda Z50A, Z50J1, Z50JZ, Z50R, Z50JDM, Z50M, QA50, QR50, MR50, XR50, CRF50, ATC70, CT70, CZ100, MSX125 (Grom), ST70, SL70, XL70, TRX70, XR75, XR80, TRX90, Kawasaki KLX110 and Z125 models to name a few.

  20. #17
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

    Engine

    Thought I would take a look at the engine, I was expecting it to be pretty rough from what I could see on the outside:


    Everything seems to be corroded and stuck good, dirt in lots of places, hardly any oil..shes had a hard life.


    In the end I found some pretty bad news, shift drum stopper separated and mangled up a few things, looks like it may have been over tightened and the spigot on the case itself has failed:


    I've got some spare J1 cases, this one will be stripped for parts, maybe I'll find a good RH case some day...

    I doubt I will get a full set of internals, I can already tell there's some bad signs in the crank and trans too...

    Jake

  21. #18
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like
    Back to the frame:

    The frames pretty much done, although the races looked trashed, so I punched out the old ones to replace with new:


    I made up a headset bearing press out of 50mm aluminium bar and a 220mm M12 axle:


    Greased up the frame, and froze the bearings:


    New bearing seated:


    Cheers
    Jake

  22. Likes Peter, babu, AstroGoat, Monkeypills, dex, SamboCo Liked this post
  23. #19
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

    Back to the forks

    Back to the forks, got my hands on a thread file and used the 1.0 mm pitch thread. The filing was pretty easy, the 34mm fork diameter is large compared to an M6x1.0 for example, and the file is guided pretty easy on the thread.

    Here you can see the stuffed thread, most of it looks like a combination of grease/dirt/corrosion, but some of the thread body has been worn away.

    It only took about 15 min for each leg, threads look pretty sweet.

    Most importantly the fork caps go on nice and easy:

    Cheers
    Jake

  24. #20
    Moderator MattyP's Avatar
    Join Date
    Sep 2011
    Location
    Canberra
    Posts
    5,004
    Post Thanks / Like
    This is really great. Well done. I could do with a set of those bearing presses.

    Keep up the great work
    Life is too short for cheap carbs...

  25. #21
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like
    Making up the wire holders for the indicators...trying to anyways:


  26. #22
    Moderator Diggs's Avatar
    Join Date
    Jan 2012
    Location
    Brisbane North
    Posts
    1,476
    Post Thanks / Like
    Geez, attention to detail much??? Good effort!
    Rigby "No dude, you're doing it wrong! Righty-tidey, lefty-losey! Not lefty-tidey mess it up because you're a loser!"

    ZRX1200S, RGV250 VJ22, Skyteam T-Rex, Z50J1 '78, XV250 Virago

  27. #23
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,628
    Post Thanks / Like
    Quote Originally Posted by Mech_Z50J1 View Post
    Making up the wire holders for the indicators...trying to anyways:

    Great work so far. Need to flatten the end that is welded to the tab otherwise it won't look original...

    I've spent $100 to make a $10 part so makes perfect sense to me .

  28. #24
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like

    More fork work

    flattened the indicator wire holders and cut it to size, doesn't look too bad:




    Should pass once painted up.

    Jake

  29. Likes babu Liked this post
  30. #25
    Moderator Diggs's Avatar
    Join Date
    Jan 2012
    Location
    Brisbane North
    Posts
    1,476
    Post Thanks / Like
    I didnt even know these were missing on my J1 till I saw this thread! Now I am not sure what to do with the wires!!!!
    Rigby "No dude, you're doing it wrong! Righty-tidey, lefty-losey! Not lefty-tidey mess it up because you're a loser!"

    ZRX1200S, RGV250 VJ22, Skyteam T-Rex, Z50J1 '78, XV250 Virago

  31. #26
    MOTY Winner 2012/2013 babu's Avatar
    Join Date
    Jan 2012
    Location
    Adelaide
    Posts
    1,628
    Post Thanks / Like
    Quote Originally Posted by Mech_Z50J1 View Post
    flattened the indicator wire holders and cut it to size, doesn't look too bad:




    Should pass once painted up.

    Jake
    I was only stuffing around but great work!!!

  32. #27
    Junior Member
    Join Date
    Apr 2013
    Location
    Sydney
    Posts
    48
    Post Thanks / Like
    Finished off forks ready for painting.



  33. Likes Peter Liked this post
