  • Tozzi's CT70 + ST70 restoration/build

    Tozzi's 1974 K3 candy topaz orange CT70 + 1970 K0 sapphire ST70 restoration/build.

    Hi everyone

    I'm Daniel. New to the honda mini-bike scene but not so new to the pit bike scene.
    I hope to meet some new friends and mini bike fanatics. I'm always looking to help where I can, all your feedback and insight would be great!!

    Having owned 4 pit bikes 3 in the past and one currently I defiantly knew my way around the problems these bikes commonly suffer and didn't find servicing and modifying at all difficult. Have always loved the simplicity of mini bikes and pit bikes.

    Still have a tonne of parts in the shed, enough to build a bike. But I'm no bike restorer/builder

    -1st gen atomik 125cc semi auto (ducar engine) talking mid (2005)
    -provert 140cc (2006) manual
    -assassin 140cc (2010)

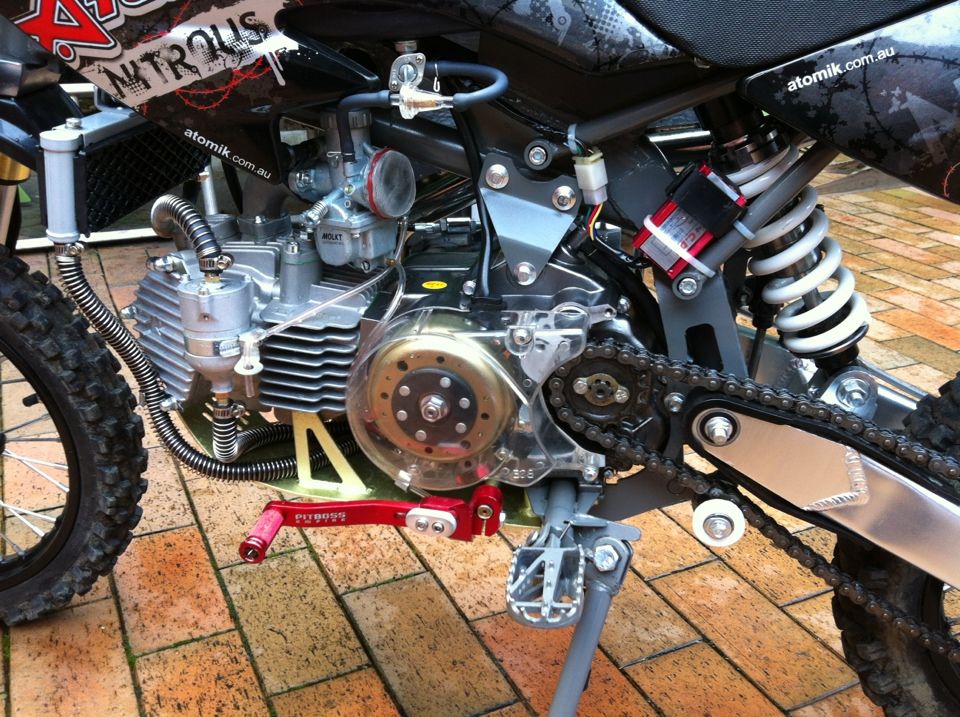

    -atomik nitrous 160cc (my current bike) (2012)





    About a month ago I happened to be on the market for a motovert rx125 which I was going to register and modify to be a fun little suburban machine, until I found what was to be a 1974 Honda ct70.









    I hadn't ever seen anything quite like it. It was new to my eyes and I simply couldn't stop looking at its potential. I always knew about the z50s but never these things!
    I searched them up on google, and found that there was a huge market for these overseas and they were road registrable. Further research lead me to find some cool forums such as this one. I was defiantly keen on showing everyone what I can do. Seeing as though there's a huge scene on vintage honda minis.

    After I saw the huge amount of parts on the market I was now well off the idea of the motovert and had to have this ct70. So this would be my first ever restoration project and build.

    The particular one I was looking at was on eBay. Still 3 days remaining and I was worries as there were 33 bidders already. Keeping my head high I placed my highest bid and 3 days later I had won the bike only just.

    I was now the owner of a k3 1974 candy topaz orange ct70

    But the bike was in Wagga Wagga and I'm in sydney so it wasn't going to be a trip in the park pick up. My 4wd was off at the mechanics until the following week and I defiantly didn't want to wait that long.

    Planned the trip for that Saturday and left for Wagga at 6am. Other than hitting a wombat at highway speed and blowing a tyre at goulburn. The trip in my dads 1986 Toyota hilux automatic 3 speed (scrap metal ute) was ok. Oh what the hell!!
    Let me just say, I won't do a drive like that again without the comfort of cruise control and the peace and quiet of new door and window seals hahaha.

    Other fails - carby motor that doesn't move and screams worse than my 1 year old nephew at 60. Had to fill up 4 times. Gear ratios on thin ute defiantly not for highway use. NEVER AGAIN lol!



    Got there around 1-2 and paid the man!
    It was official, a receipt, the keys and a big smile on my face.
    The ct70 was mine, never had seen one in person so I was like a kid at Christmas.

    Drove back to sydney, much better drive back. It defiantly felt good to be home after 12-13 hours on the road. I sat in front of the bike with a notepad and started noting down what I saw I needed to do and buy.

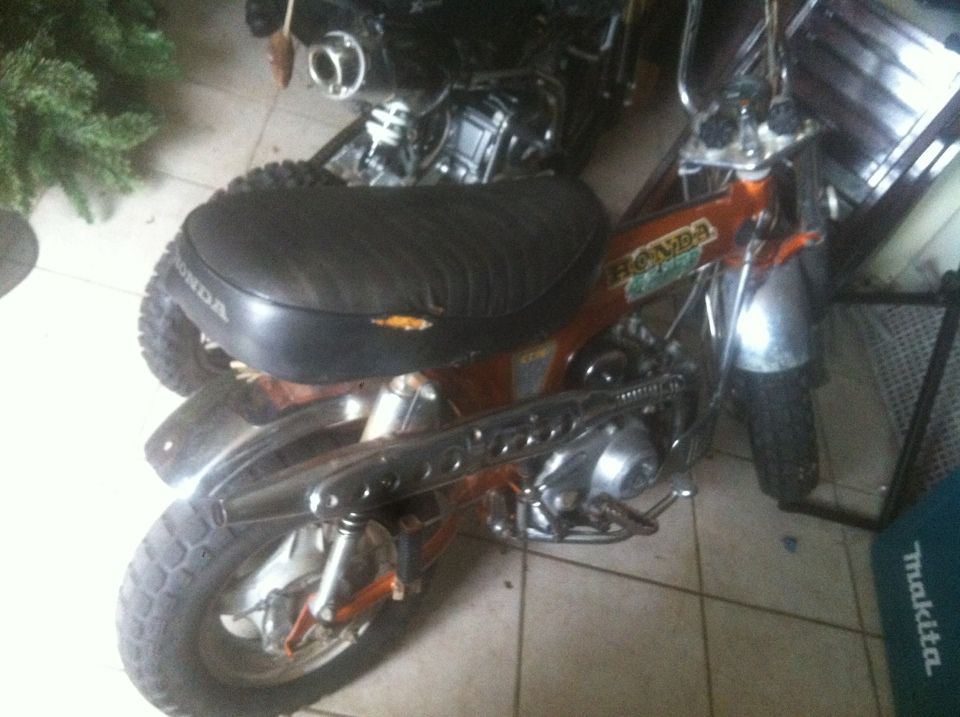

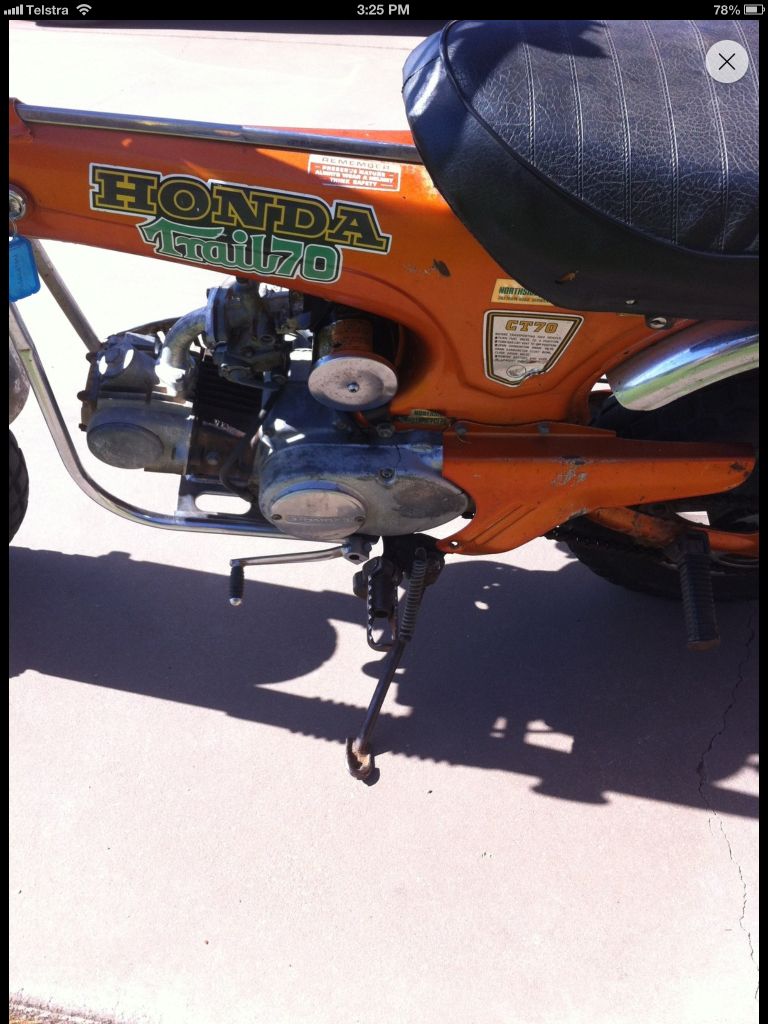

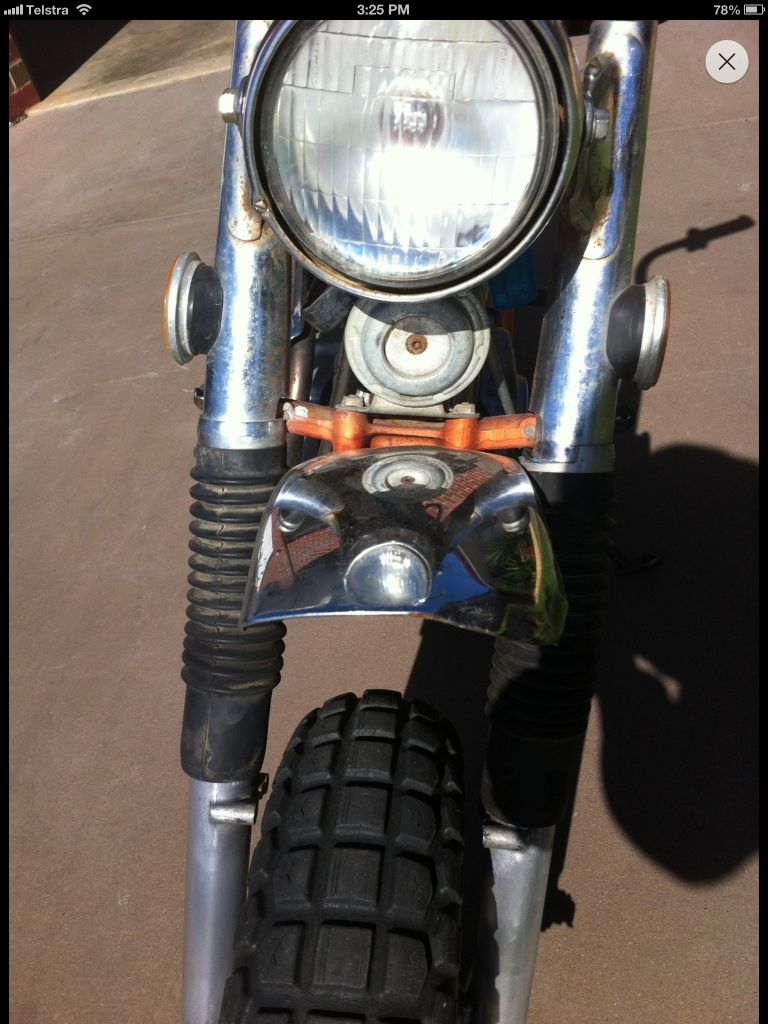

    Here is how she sat when I bought her





    Things wrong/missing:

    -front indicators and indicator stem missing
    -Tail light bracket, tail light, Rear indicators missing
    -Key to ignition different to helmet lock (previous owner had lost it)
    -snapped brake lever and cable (front)
    -throttle cable worn
    -rear brake switch spring missing
    -indicator switch console missing
    -damaged front fender
    -minor dent on rear fender
    -frame handle missing
    -seat torn and rusted underneath
    -rubber battery flap missing
    -exhaust heat shield dented
    -steering stem bearings felt sticky and worn
    -headlight ears/fork top covers dented
    -broken right fork reflector

    And along with some very minor surface rust on some of the chrome pieces.
    I'm sure I've missed a few little things but that's all the big stuff that needs attending/replacing. The rest was just dull and dirty from years and years of storage.

    The lights were not working when I had bought it but I knew that wouldn't be a huge issue to fix seeing as though the battery looked to be at least 20 years old and wiring kits were readily available online.

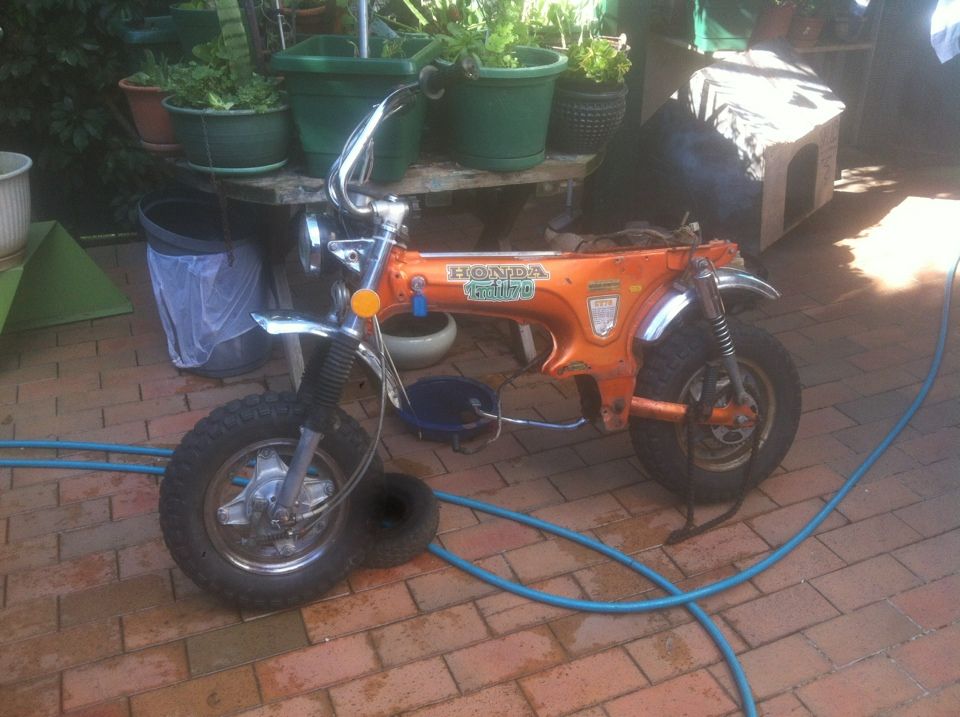

    After a few busy days at work I took some time to start this build and see what else was needed in the spots I hadn't looked yet.

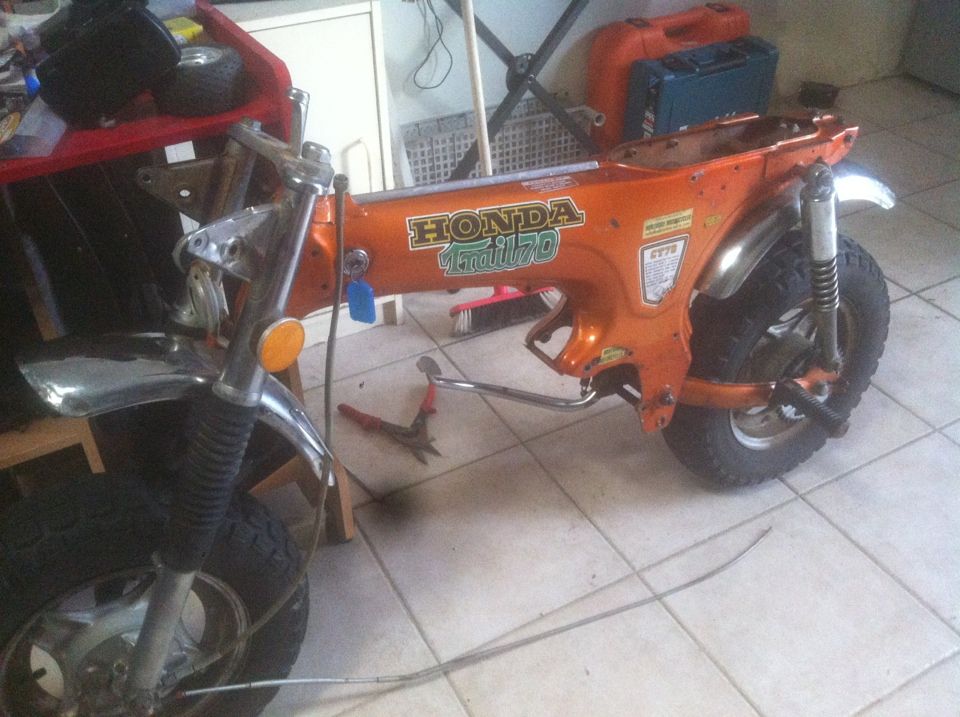

    The stripping process had begun!

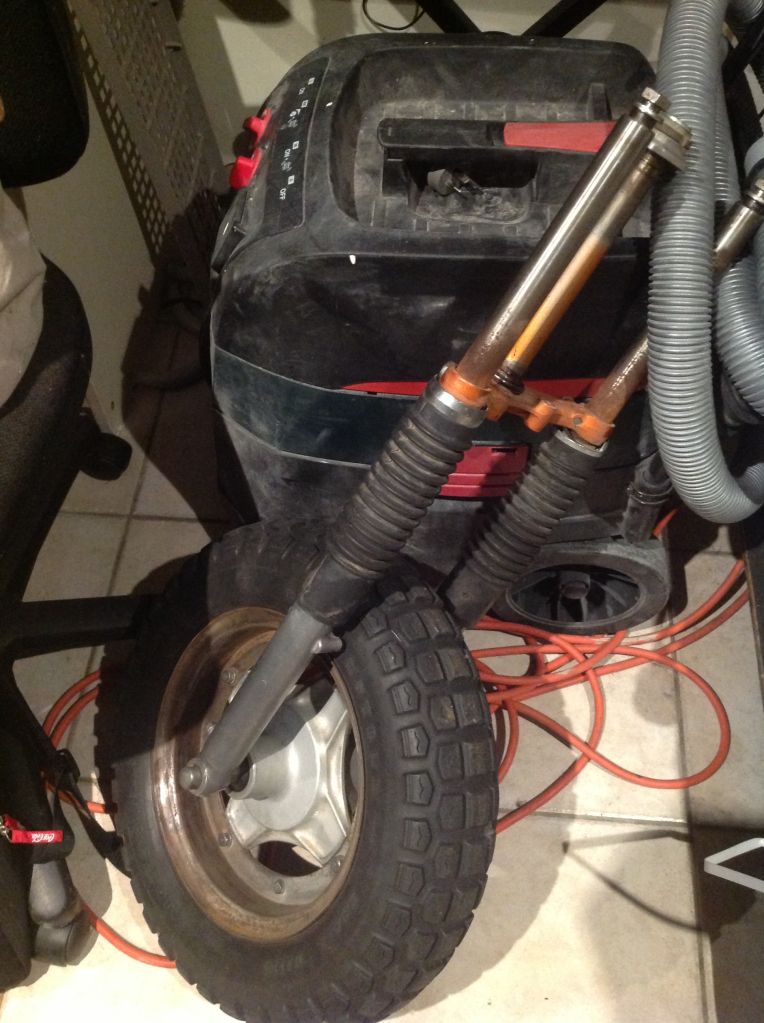

    Front forks are in great nick, just in need of some polishing, some new oil and seals. Will be kept aside to restore this bike back to 100% original one day.

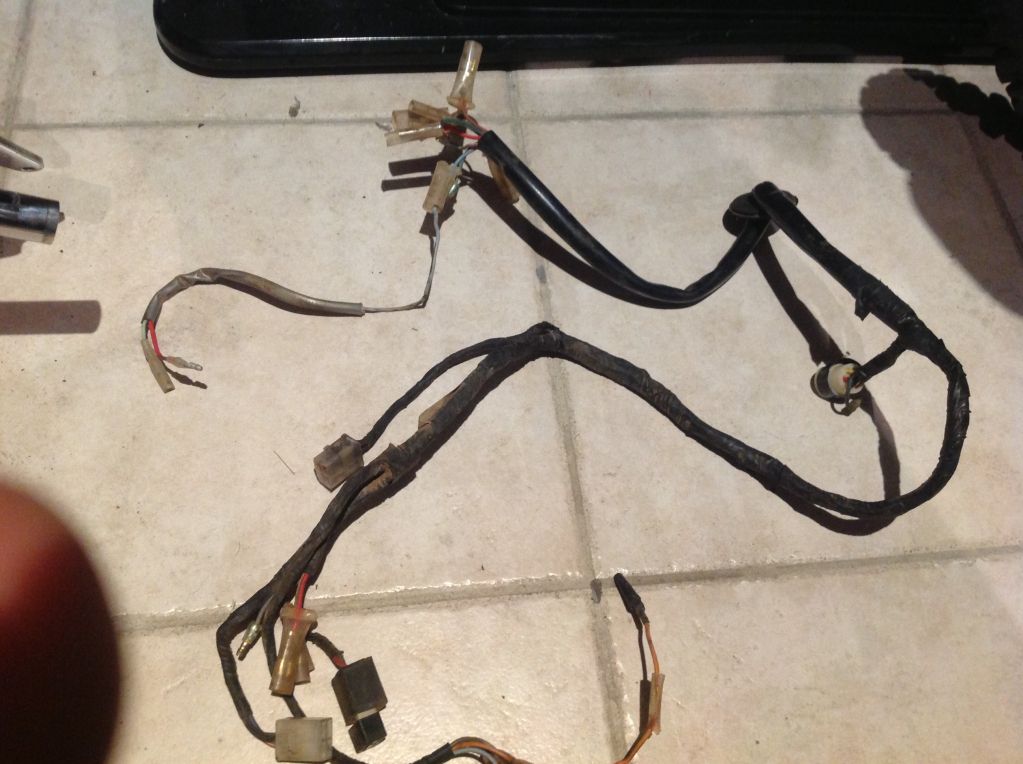

    Like I thought. The wiring loom is in excellent condition and won't need to be replaced. No cut wires anywhere. Just some that have been added by someone in the past for some strange reason.

    Seeing as the plan for now is to restore the bike to OEM standard (for now) I will keep the 6v electrics.


    [more soon, just writing up pt 2 and uploading pics]
    I'll reveal the k0 sapphire st70 soon also

    -Daniel

  • #2
    welcome to the site, sweet bike, really nice condition for a 40 year old dax, seems like your moving along pretty quickly with this one, cant wait to see what you'll do next. Check out Eichkays ct70 to see what would happen if you totally blinged that 74 out

    Comment


    • #3
      Originally posted by MOTODEVO View Post
      welcome to the site, sweet bike, really nice condition for a 40 year old dax, seems like your moving along pretty quickly with this one, cant wait to see what you'll do next. Check out Eichkays ct70 to see what would happen if you totally blinged that 74 out
      Thanks devo
      Trying hard to get it done in under a month, we shall see how it all turns out!
      Lucky for me i have the spare time time to do it, for once in my life!

      Be ready for a very active thread with daily news!

      Comment


      • #4
        a month !!
        damn man ,,,, slow down ,,,,, your making us " buuuuurrrrp " look bad ..!
        its engine oil madge ,,,
        Your soaking in it ,,!!

        Comment


        • #5
          Originally posted by dex View Post
          a month !!
          damn man ,,,, slow down ,,,,, your making us " buuuuurrrrp " look bad ..!
          haha yeah man a month, thats if shipping for some items is on time etc. other than that most of the hard works been done which will be on my next post (couple hours)

          not trying to make anyone look bad :P just wanna ride something truly unique through the sydney suburbs!

          Comment


          • #6
            hopefully you didnt order from webike then! Awesome site with unbeatable prices but the shipping times seem to vary from long to ridiculous

            Comment


            • #7
              The bike now was at its last stage of diss-assembly.
              The final finishing parts removed, everything nice and carefully

              Except the rusted out exhaust bolt!!! dremel did the job cutting that out.

              and there we have it




              The structure.

              Did some panel work today on the head light bucket which was slightly dented. Thought id use normal metal bog. Paint was stripped using metal brush attachment on a standard impact driver. I used this technique for all my paint stripping. Gives it a nice file finish without eating at the metal.




              (wire brush attachment fitted)

              The powder coater sent me home with a stick of "sellys" knead it metal epoxy.
              Much harder to work with and sand, but it dried up like metal and can withstand the baking heat for the powdercoat.


              i reccomend this stuff to anyone! It fixes anyting that fillers cant. Kneadable steel putty in basic words.


              The heart ( the standard engine ) has now been sent to RICHIE (******) for a overhaul and restoration back to original. Heard a lot of good things!
              Motor is expected back end of this week looking and performing as new as it did 40 years ago.

              Frame and swing arm sent to the sand basters and is expected at the end of this week also!

              Along with:
              -fuel tank
              -fuel tank face bracket
              -footpegs complete rail with stand
              -headlight bucket
              -speedo bracket

              Which are all coming back powdercoated gloss black.
              (pix will come when i get everything back)

              Comment


              • #8
                Can't wait to see the k0 st70. Are you going to modify the st70?

                What problems have you had with the china pit bikes?

                Comment


                • #9
                  So you can powdercoat over knead it? Never knew that

                  Comment


                  • #10
                    I took a trip a bunnings earlier last week to buy some wet and dry sand paper and some metal polish. (the oldschool way)
                    until i had come to a section where i had found a whole isle on buffing pads and accessories for converting your ordinary bench grinder into a polishing machine.



                    I knew i had an old bench grinder lying around that dad had not used in years so i bought Buffing disks, Buffing disk adapters and metal cutting and polishing compound. Hoping id give it a try and get some results (it was a first for me)


                    i got home did the quick and easy buffer conversion and w*****!
                    My new polishing station.
                    (headlight bucket now sanded and level with "knead it") Ready for Powdercoat!

                    I must say i didnt know how to start, but read some instructions and watched some youtube tutorials and i was ready to get into it for myself.



                    Here are the results:











                    I will take better pictures of the shine with a better camera. There aren't any imperfections and nothing but shine! Ive saved myself a lot of money on replacement parts which just needed a good clean and buff.



                    Thats all for today.
                    more progress tomorrow!

                    goodnight

                    -Tozzi

                    Comment


                    • #11
                      Originally posted by Z50Jack View Post
                      Can't wait to see the k0 st70. Are you going to modify the st70?

                      What problems have you had with the china pit bikes?
                      ill be revealing it soon dont worry
                      for now both bikes will be restored to original.

                      Then when they are complete and a good base to work on, ill get into the good shit
                      extended swing arm, FAT rear tyre, daytona 190fdx etc (but well see) hate ruining such original bikes, but then again most things reversible when it comes down to modding these things.


                      China bikes are china bikes. Built cheap and with short cuts.
                      service and lubricate the neccessary areas of a decent pitbike with a rigid frame and you will only find yourself having the common issues. (kick starter assemblys, bent footpeg rails, slipping gears on some engines, gaskets. But then again every bike is different. Ive always owned the "better" of the china pitbikes.

                      Comment


                      • #12
                        Originally posted by MOTODEVO View Post
                        hopefully you didnt order from webike then! Awesome site with unbeatable prices but the shipping times seem to vary from long to ridiculous
                        yes according to my powder coater it withstands the heat 85% of the time. If it dont work, we try again.

                        and thanks for the info about webike. thankfully, not ordered from there but they do have parts ive been looking at for a while if i head a different direction with the bikes (not so original spec)

                        Comment


                        • #13
                          J-parts in Japan can get you any Honda OEM part and it's always massively cheaper than buying it from Australia.

                          Holy hell you did a good job with the polishing. I bought the white and black soaps and only have 2 buffing wheels. Mine looks good but yours is incredible.

                          There's a lot of St70's and ct70's around. Don't be afraid to ruin them with fat tyres, low suspension and massive motors. If you had a cz100 or z50m it would be different.

                          Comment


                          • #14
                            Originally posted by Z50Jack View Post
                            J-parts in Japan can get you any Honda OEM part and it's always massively cheaper than buying it from Australia.

                            Holy hell you did a good job with the polishing. I bought the white and black soaps and only have 2 buffing wheels. Mine looks good but yours is incredible.

                            There's a lot of St70's and ct70's around. Don't be afraid to ruin them with fat tyres, low suspension and massive motors. If you had a cz100 or z50m it would be different.
                            thanks mate i seriously tought myself overnight, trick is to repeat the cutting compound till your hand starts burning up.

                            might ruin my 74 with this if we can even call that ruining.

                            Comment


                            • #15
                              Sorry for the the late progress post, ive been busy on the bike. This is the latest news.

                              My engine builder has told me i will need a new piston along with the usual gasket and rings. Seeing as though bringing it back to oem will cost me about the same as getting the Takegawa 88cc kit.

                              So ive decided to go the 88cc kit
                              I will have it back by mid next week.

                              Today i took another trip to Bunnings today in search for some smaller metal polishing pads and new wire brush attachments to get the rims and hubs done.

                              this is what i picked up


                              Josco make the best products for paint stripping and metal polishing, i have only used their products throughout the project and their products simply make it too easy! This particular kit was to turn a ordinary drill into a metal buffer/polisher.


                              Along with new bench grinder pads.

                              Went into the shed and started disassembling the rims.
                              For someone who was used to pit bike hubs this was very new to me.
                              I didn't know how to start?
                              until i found a thread online telling me i had to remove the circle snap ring.
                              Which wasn't easy at all! is there a trick to it?
                              I needed my mrs help me jam a screwdriver in the gap while i used two screwdrivers to force them open then i used the jammed screwdriver to yank up and pull it off.
                              No damage to the snap ring, but surely that isn'tthe right way to get that off.



                              Rim hub was then easily removed off the rim, mind you the tyre was stuck on tight! That was by far the hardest part of the job.


                              I now had everything ready to be polished.

                              I had now realised rims were steel, and i had a feeling i wasnt going to get the finish i wanted.

                              I had to try anyway!
                              I started polishing!







                              NO RESULTS. other than a no shine clean.
                              I tried and i tried. Being a perfectionist, and this being a 99 point restoration (lol), i had chosen to go a different path.

                              Used a wire brush attachment on the rims and started filing away all the grit, oil and what seems to be Hondas original rust protection layer on the rims.

                              Not to worry, everything will be back to factory shiny silver tomorrow!
                              I will be giving them a prep tonight ready for some paint tomorrow.






                              Heres a clearer picture of my polishing for those who wanted to see.



                              Tonight i will be working on polishing up a brand new polished up (factory finish) oem honda engine cover that was dropped by the previous owner. I picked it up for $30

                              I had to strip it down using the file brush attachment killed me to do it!
                              It was such a nice finish, but i wasnt going to have scratches on my engine cover. I hope to get a chrome finish all round, shinier than factory





                              Anyway thats enough for now, ill update more later tonight

                              -Tozzi
